枠側面付隠し蝶番 ＨＥＳ２Ｓ－１４０－Ａ１２５－ＢＬ
黒
枠側面付隠し蝶番 ＨＥＳ２Ｓ－１４０－Ａ１２５－ＢＬ
| 定価 | 5020円／個(税別) |
|---|
| 色・寸法 | ブラック |
|---|
| 商品コード | 800050758 |
|---|
| 品番 | HES2S140A125BL |
|---|
【用途】枠側を掘り込まずに面付できる隠し蝶番です。現場の作業を大幅に短縮できます。三次元調整機能付（上下、左右、前後）【仕様】
●仕上げ：ブラック
●仕上げ：ブラック
シリーズ名
ＨＥＳ２Ｓ－１４０面付建具用隠し丁番
付属品
●十字穴付皿タッピンねじ4×20（8本/蝶番1個）、扉側堀込
●枠側取付テンプレート
●枠側取付テンプレート

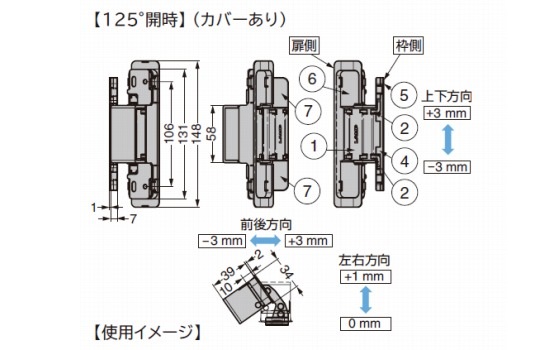

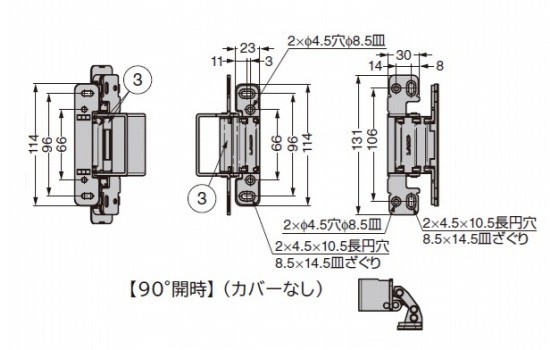

図面
